Ambu® VivaSight™ 2 SLT

Ambu® VivaSight™ 2 SLT

Continuous visualization of tube and blocker position

VivaSight 2 SLT is a sterile, single use endotracheal tube intended for:

  • Oral intubation procedures
  • General inspection of the airways and visualization during intubation procedures
  • Temporary artificial airway in adults requiring mechanical ventilation

Follow tube placement in real time

VivaSight 2 SLT is similar in design to conventional single lumen tubes. However, it is unique in that it has a built-in video camera that connects to an Ambu monitor. This makes it possible to follow tube placement in real-time.

Benefits of continuous visualization

The integrated camera and continuous visualization of VivaSight 2 SLT provides several benefits:

  • Facilitates endotracheal intubation
  • Provides continuous visualization of endobronchial blocker position
  • Ideal for monitoring of correct tube placement
  • Significantly reduces the need to use a bronchoscope

The full Ambu OLV portfolio

Ambu offers a family of products, which includes VivaSight 2 SLT and VivaSight 2 DLT with integrated camera, VivaSight Endobronchial Blocker Tube and the single-use bronchoscope Ambu® aScope™ 4 Broncho Slim.

VivaSight 2 SLT can be connected with Ambu’s full HD monitor, aView 2 Advance, for high quality imaging capabilities and Dual View mode, as well as to the aView monitor.

KEY BENEFITS

Overcoming the challenges of placement and positioning

Real-time monitoring of correct tube placement

VivaSight 2 SLT is ideal for monitoring tube placement during the procedure.

Significantly reduced use of bronchoscopes

VivaSight 2 SLT can significantly reduce the need to use a bronchoscope to verify correct tube placement.

Continuous visualization of endobronchial blocker position

VivaSight 2 SLT provides real-time visualization of endobronchial blocker positioning during the OLV procedure.

Facilitates endotracheal intubation

Integrated camera facilitates correct placement and positioning of the ET tube.

Confidence booster

Provide reassurance for the anaesthetist.

Zero cross-contamination

Single-use and sterile with no risk of patient cross-contamination.

Features

Second generation VivaSight single lumen tube with integrated camera

add_circle1

Pilot balloon for the tracheal cuff

add_circle2

Video connector

Intuitive and easy connection to the aView 2 Advance Monitor.
add_circle3

Flush port

To remove secretions on the lens using air or saline flushes.
add_circle4

Video camera and LED light source

Camera lens: Coating that reduces incidence of obscured views • Camera Image sensor: CMOS • Light source LEDs: 2 white • LED power:  49.5mW – 66mW
add_circle5

Flush port exits

Flush ports used for cleaning the lens.
add_circle6

Tracheal cuff

Intuitive and easy connection to the aView 2 Advance Monitor.
To remove secretions on the lens using air or saline flushes.
Camera lens: Coating that reduces incidence of obscured views • Camera Image sensor: CMOS • Light source LEDs: 2 white • LED power:  49.5mW – 66mW
Flush ports used for cleaning the lens.

FAST & EFFECTIVE

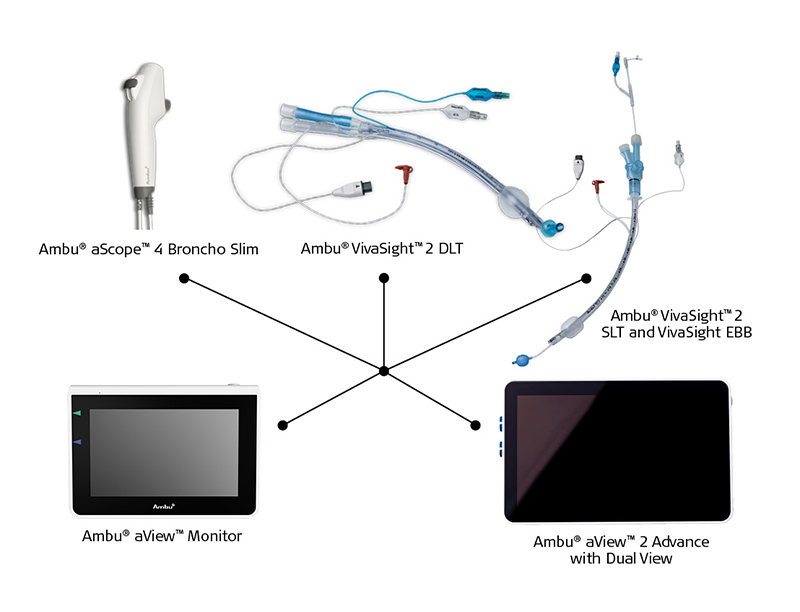

Comprehensive Ambu OLV solution

VivaSight Endobronchial blocker tube is a single-use endobronchial blocker designed for One Lung Ventilation when used in combination with an endotracheal tube (ETT). It is compatible with VivaSight 2 SLT and consists of a sterile, single-use, steerable balloon-tipped catheter, which  is visually guided to a selected bronchial segment to provide balloon blockage of the distal airway.​

The Ambu OLV portfolio includes:

  • Ambu® VivaSight™ 2 DLT
  • Ambu® VivaSight™ 2 SLT
  • Ambu® VivaSight™ Endobronchial Blocker tube
  • Ambu® aScope™ 4 Broncho Slim Bronchoscope
  • Ambu® aView™ 2 Advance full-HD Monitor with Dual View
  • Ambu® aView™ Monitor​

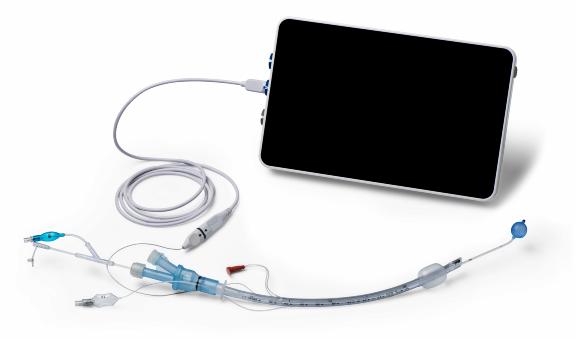

Use VivaSight 2 together with our aView 2 Advance monitor

​The combination of the full HD monitor and integrated camera in VivaSight 2 has a number of features, which can help you keep the focus on your patients:

  • Integrated Dual View Mode enables you to view real-time video from  VivaSight 2 and aScope 4 Broncho Slim simultaneously
  • Full HD resolution and advanced image processing ensure high image quality
  • Easy recording and storage of images and videos during procedure for documentation and training​

Clinical Evidence

10

clinical studies are available for this product


View 10 clinical studies

Technical specifications

Sizes:

VivaSight-SL: 7.0, 7.5 & 8.0 mm (ID)
For OD and length, please refer to datasheet

VivaSight EB: 9 Fr, length 700 mm

Image sensor:

CMOS

Light sources:

2 white LEDs

Spare parts

There are no spare parts or accessories for this product.

Downloads

Datasheets

file_download VivaSight-SL Datasheet
(250.68 KB - pdf)

Instructions For Use

file_download IFU VivaSight 2 SLT ENG Abridged Version
(1.11 MB - pdf)

Maj 2021
